An altitude chamber, also known as a hypobaric chamber, is a dedicated enclosed space used to simulate high altitude conditions. It can simulate altitudes of up to 100,000 feet and often incorporates temperature and humidity control for more wide-ranging testing. These chambers are used for various applications, including automotive, electronics, aerospace, and defense.
Simulate real-world altitude, temperature, and humidity conditions—all in one
advanced testing solution.

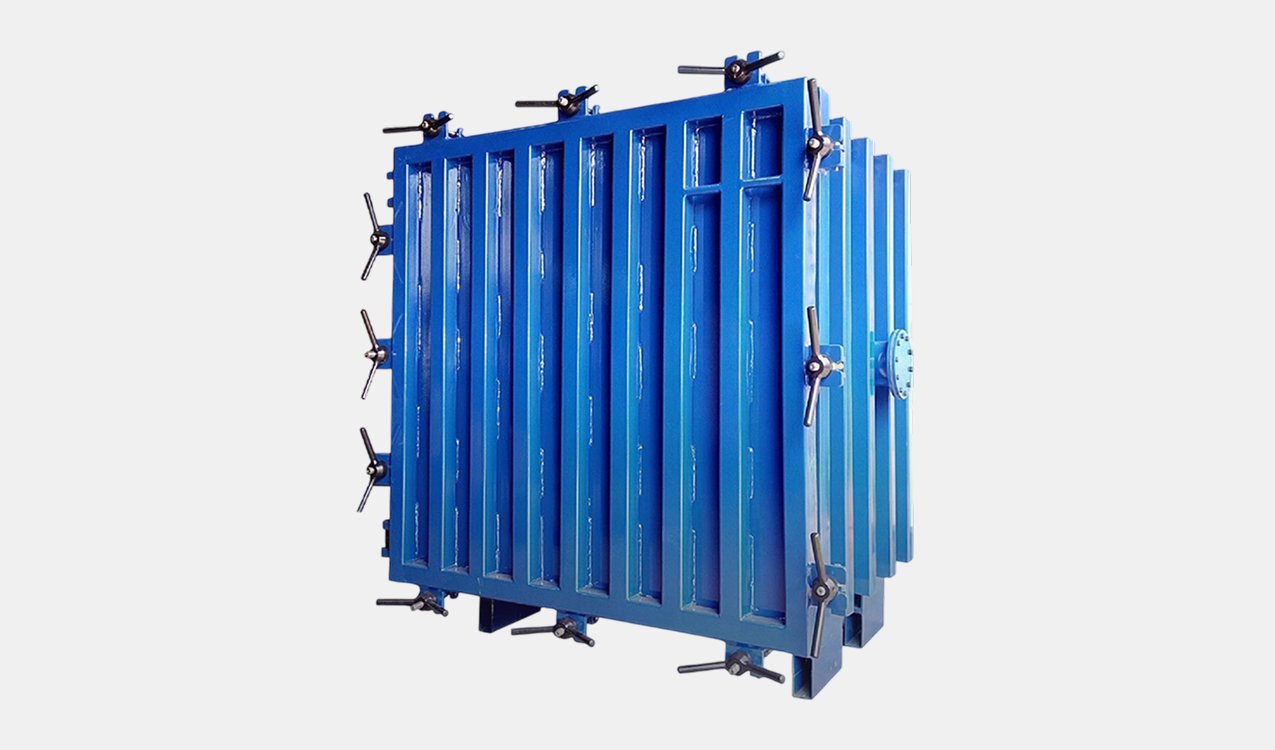

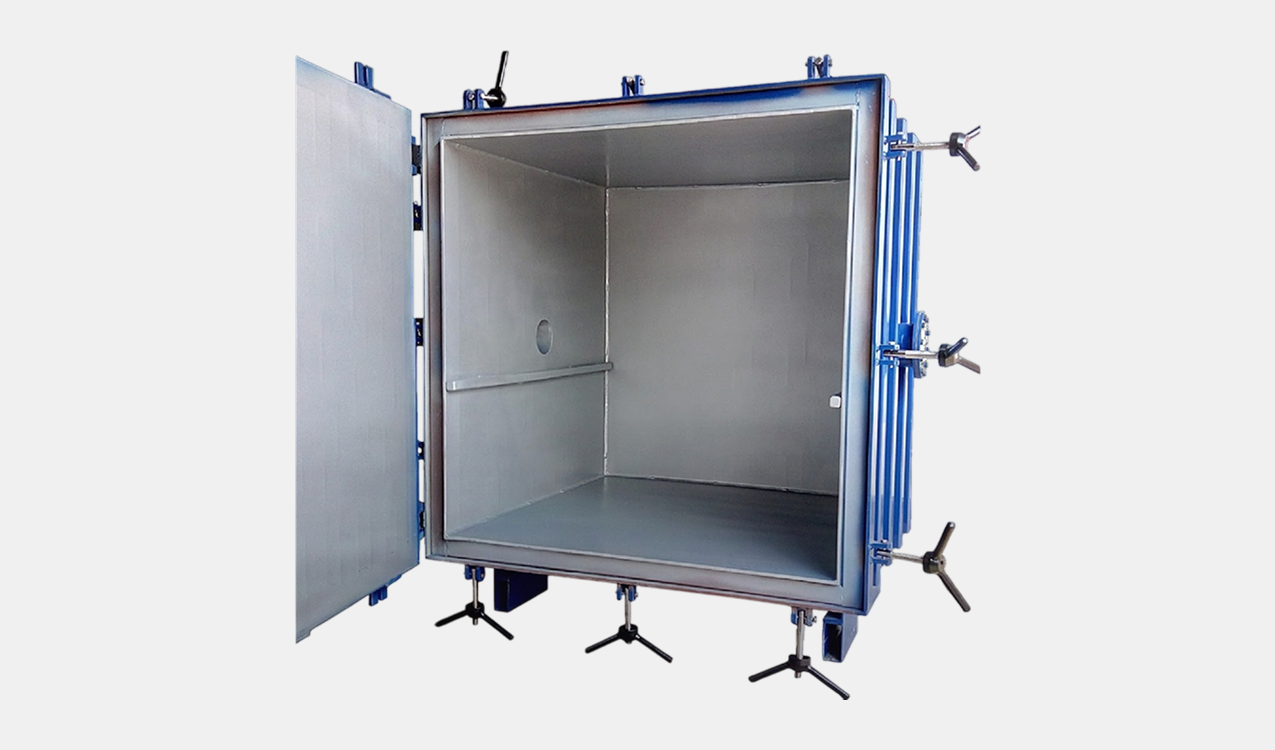

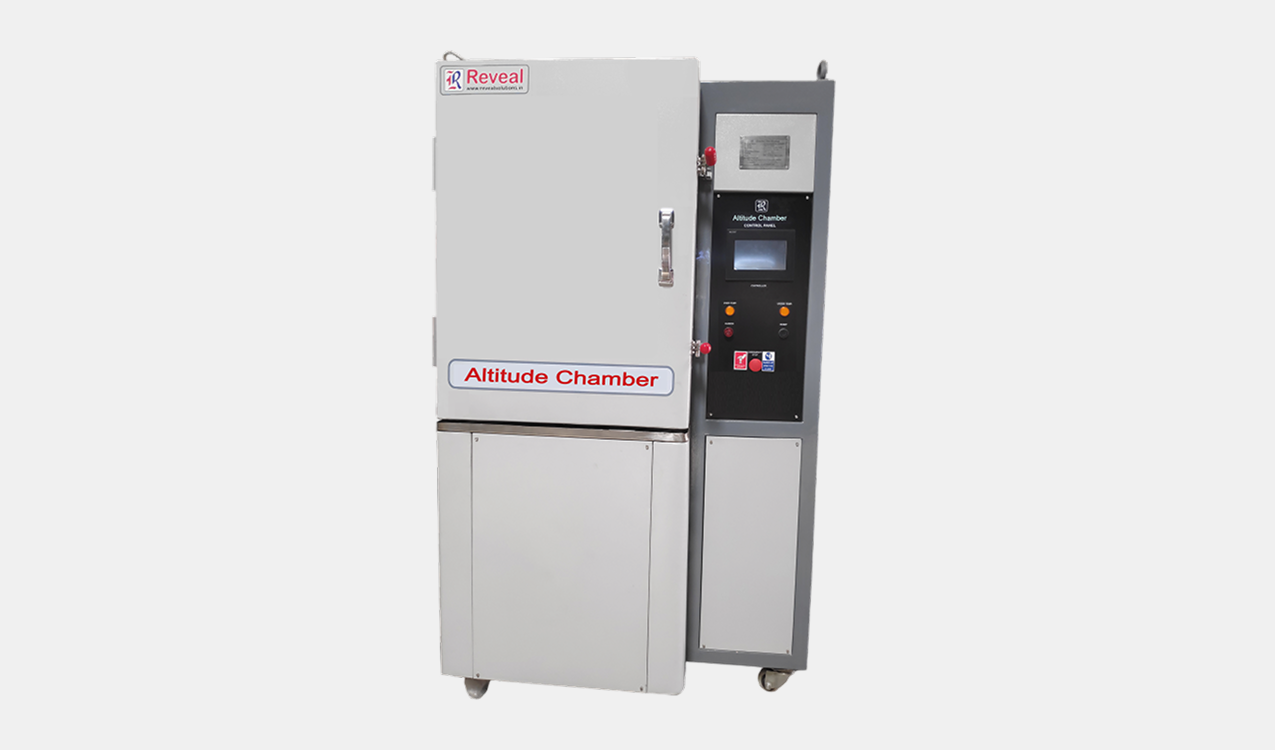

Reveal Altitude Test Chambers are engineered to replicate extreme
environmental
conditions, allowing manufacturers to validate product performance under varying
pressure, temperature, and humidity levels. With the ability to simulate altitudes
up to 120,000 feet.
Climatic Chamber also known as CATH Chamber.
Some Essential Features of Altitude Chambers
These chambers are designed for reliability, accuracy, and long-term durability, with several key features:
-
Altitude Simulation up to 120,000 ft
-
Precise Temperature & Humidity Control
-
Rapid Thermal Cycling Capabilities
-
User-Friendly Interface & Data Logging
Some Applications of Altitude Chambers
These chambers are designed for reliability, accuracy, and long-term durability, with several key features:
Aerospace & Aviation
-
Pilot Hypoxia Training
- Trains pilots to recognize symptoms of hypoxia at high altitudes.
- Simulates rapid decompression and emergency situations.
-
Aircraft Systems Testing
- Tests aircraft components under simulated high-altitude conditions.
-
Astronaut Training
- Simulates space-like vacuum or reduced-pressure environments.
- Prepares astronauts for extravehicular activity (EVA) scenarios.
Military & Defense
-
Flight Crew Conditioning
- Enhances altitude tolerance and cognitive response in aircrew.
-
Survival Training
- Prepares personnel for emergency situations involving decompression.
-
Performance Testing
- Evaluates physical and mental performance under simulated combat altitude conditions.
Sports Science & Athletics
-
Altitude Training (Hypoxic Training)
- Simulates high-altitude environments to improve aerobic capacity, endurance, and oxygen utilization.
- Used by athletes preparing for competitions at altitude or aiming to increase VO₂ max.
-
Acclimatization Protocols
- Prepares athletes for events held at high elevations (e.g., marathons, cycling races).
Medical & Clinical Research
-
Sleep Apnea & Hypoxia Research
- Studies the impact of low oxygen environments on sleep patterns and respiratory health.
-
Pulmonary & Cardiac Testing
- Evaluates how diseases like COPD or heart failure respond to hypoxia.
-
Altitude Sickness Simulation
- Assesses patient risk for AMS (Acute Mountain Sickness), HAPE, or HACE before travel.
Scientific Research
-
Human Physiology Studies
- Investigates how the body responds to hypoxia, low pressure, and varying oxygen levels.
-
Environmental Physiology
- Examines biological adaptation to altitude in humans and animals.
Mountaineering & Expedition Preparation
-
Pre-acclimatization for Climbers
- Allows mountaineers to adapt before ascending to extreme altitudes (e.g., Everest base camp).
-
Emergency Response Training
- Prepares rescue teams for high-altitude operations.
Some Available Configurations of Altitude Chambers
These chambers are used across various sectors such as:
-
Thermostatic Chambers
Temperature and pressure control -
Climatic Chambers
Temperature, pressure, and humidity control
Whether you’re testing avionics, sensors, batteries, or materials, REVEAL chambers provide the controlled environment you need for accurate and repeatable results.
Ready to elevate your testing
Contact us or Request a Quote to learn more about REVEAL Altitude
Test Chambers.
Standard Models
| Models | Unit | RESPL AC-150 | RESPL AC-270 | RESPL AC-420 | RESPL AC-1000 | RESPL AC-1875 |
|---|---|---|---|---|---|---|
| Test Space Dimension (WXDXH) | mm | 500 x 400 x 750 | 600 x 600 x 750 | 750 x 750 x 750 | 1000 x 1000 x 1000 | 1000 x 1250 x 1500 |
| inch | 20 x 16 x 30 | 24 x 24 x 30 | 30 x 30 x 30 | 39 x 39 x 39 | 39 x 49 x 59 | |
| Test Space Volume | Ltr | 150 | 270 | 420 | 1000 | 1875 |
| Temperature Range | (°C) | -65 to +150 | ||||
| Altitude Method | Vacuum pump mechanism | |||||
| Ramp rate* | (°C/min) | 1/2/3/5 | ||||
| Altitude Range | mbar | Atmosphere to 1 millibar (150000 feet APPROX) 10 mbar (100,000 feet) or Custom Range: Ambient to 1 (mbar) | ||||
| Cooling Type | Air or water cooled mechanical refrigeration | |||||
| Air Cold Condenser | Room Temperature 20°C to 25°C | |||||
| Water Cold Condenser | Water Temperature 8°C to 20°C | |||||
| *We also manufacture chambers according to the customer's requirements, including temperature ramp rates and sizes. | ||||||
